TV screens - Black/Grey or nothing displaying

Created by Dan Dicker, Modified on Wed, 25 Jun at 6:40 PM by Dan Dicker

Please be aware there are 4 sections to this guide

1) Checking power (all devices with black screens)

2) How to make sure the ORB is on the correct input

3) How to make sure Video Walls/DT Order Taking Screens are on the correct input
4) How to make sure all other types of screens are running the Optisigns app

Please ensure you scroll to the correct section

Check Power

For ORBs Only

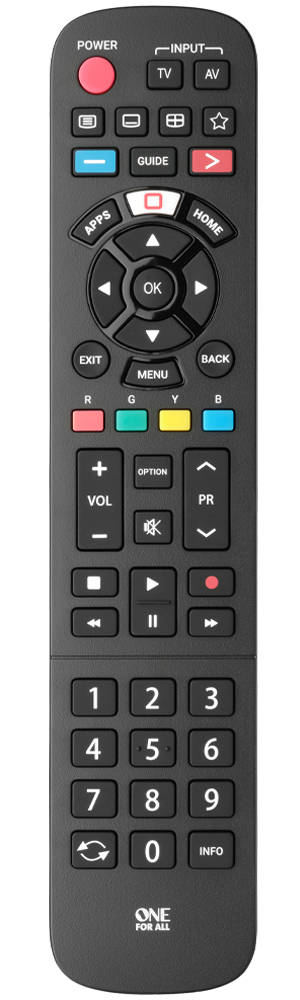

You will have a Remote that does NOT have Samsung at the bottom.

Press the Menu button and it should come up on screen if the screen is on. If it isnt please check power.

If you still have issues, please send a picture of your remote in the ticket

All other devices

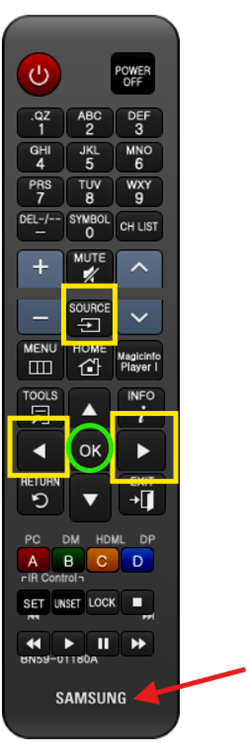

Please find the SAMSUNG remote (Logo at the bottom)

Press the home button (red). If the menu comes up the screen is on.If it isnt please check power

If you still have issues, please send a picture of your remote in the ticket

TV on but no content displaying (3 sections based on type screen type)

ORB Screen (if you are not having issue with an orb, please keep going down)
This remote is not a Samsung Remote	Please press the source button and select HDMI1. If HDMI is not showing but HDMI 2 / 3 / 4 is, please try these. If this still doesn’t work please take a picture of this menu bar and include in the ticket
Video Wall/Drive Thru Order Taking Screen (if you are not having issue with a Video Wall or DT OTS, please keep going down)

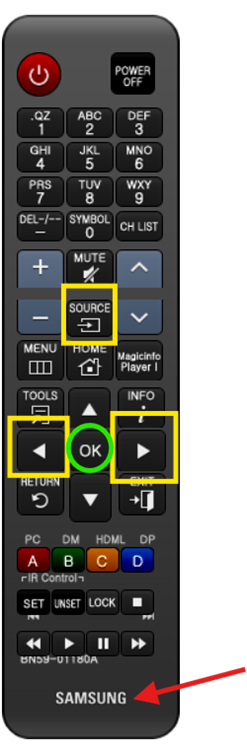

	Please make sure you use the Samsung remote Press the source button and use the left/right arrows to select HDMI 1 Then press Ok. If HDMI is not showing but HDMI 2 / 3 / 4 is, please try these. If this still doesn’t work please take a picture of this menu bar and include in the ticket.
All Other Screens (Menu, Shatter, Presale, DT Menu)

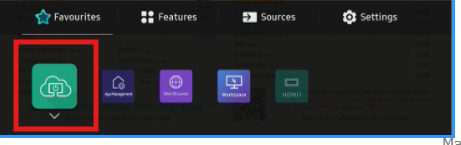

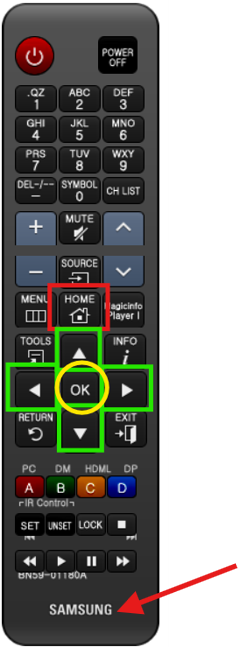

	Please make sure you use the Samsung remote Use the arrow keys (Green) to come over to the below icon and press OK (Yellow) This should bring your content up. If this does not, please take a photo of the screen and include in the ticket.
